Case Studies

Shearline - Large Unit


  • Shearline - Large Unit
  • Vancouver, BC
  • Prototype Large Slotted Cylinder

slotted cylinder, tight tolerance welding

SITUATION

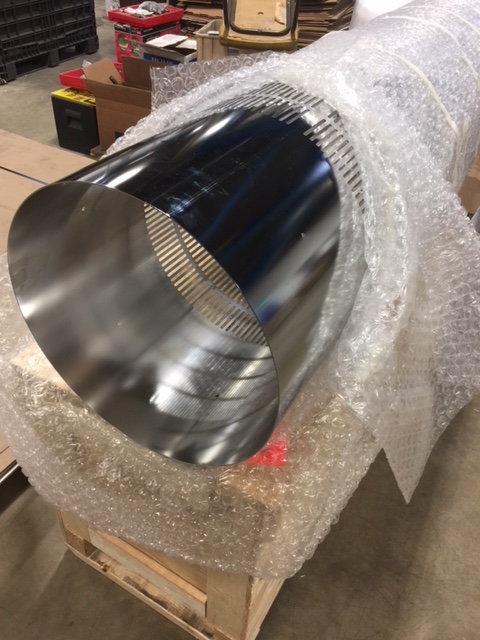

Client needed 18" round by 60" round slotted stainless cylinder that is perfectly round and electropolished finish.

CHALLENGE

The product would have to withstand multiple fabricating processes and hold its finish and perfect roundness.

SOLUTION

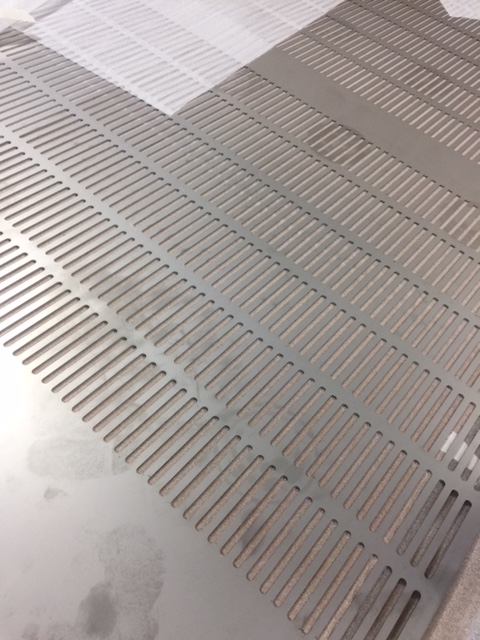

We laser cut the slots in the blank and then rolled and welded a perfectly round cylinder using our sophisticated rolling machines to preform and our experience in welding material to provide no distortion.

RESULT

The customer is in the process of putting together the prototype machine for a trade show.
